Hi I have a setup as above but cannot find any option/wiring diagram to integrate a gateway into the system so I can take advantage of island mode.
Can anyone help with this??
I have a similar setup. Gateway essentially goes between the house and the main MCB
Hi Thanks for getting back to me. I have asked an electrician to quote for the install but I believe he is complicating the job. Is there any way you could send me a simplified wiring diagram showing the way yours is installed?? I don’t think its a difficult job as everything is there to connect to but i’m concerned that I’m missing something.
Here’s a link to the gateway installation guide which has the electrical diagrams and examples Gateway installation guide

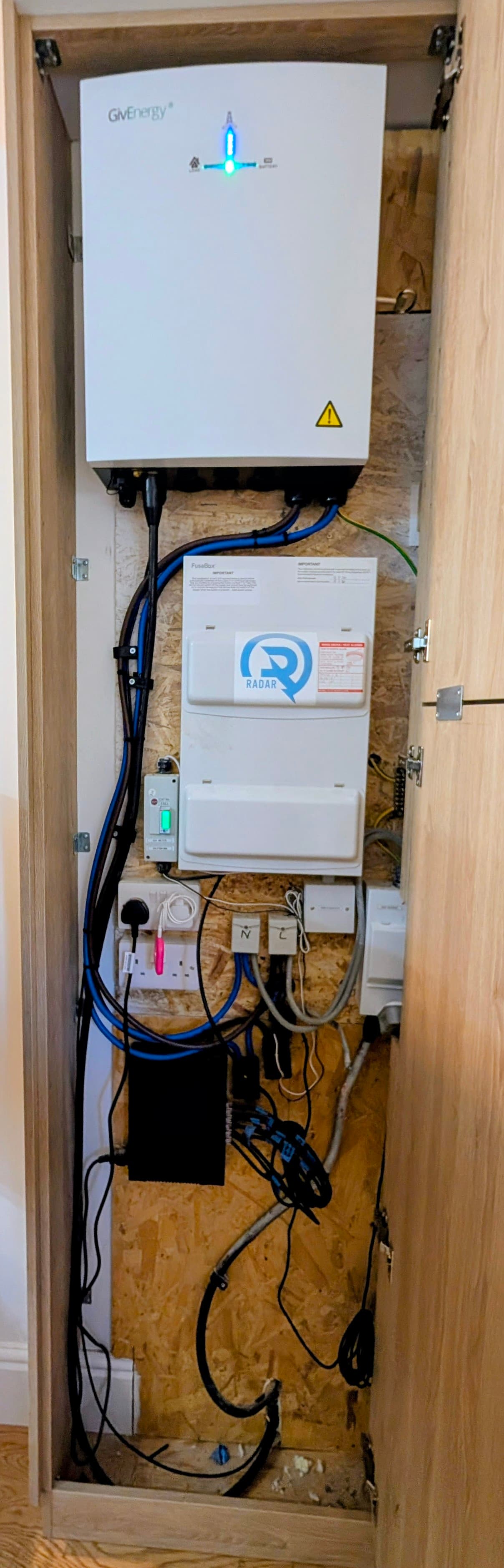

This is a photo of my MCB setup.
I don’t think that you can add a gateway to a hybrid inverter. GivEnergy never got around to producing a HEMS.
This article gives you some idea of what is possible but you will have to be careful that you don’t overload the circuit or you could damage the inverter.
Hi and thanks for that resource.
I believe that example 4 is my solution as everything is in place including a new dedicated earth rod.
I will obviously have to use an accredited electrician to do the work but now have a true understanding of the work needed.
Thanks again
